Maximum Strength 5x250mm Cable Locks: ISO 17712 Container Seals
When your logistics operations face the highest risk profiles, standard locks are simply not enough. The 5×250 mm Cable Seal offers the pinnacle of adjustable wire security. Featuring a massive 5mm diameter steel cable, these heavy-duty container seals provide immense tensile strength to protect your most valuable international and domestic freight. Fully compliant with the strict requirements of ISO 17712:2013, they guarantee your cargo meets rigorous global customs standards.
Tamper-Evident Security & Anti-Corrosion Design
Engineered for harsh industrial and marine environments, these high-security container seals feature a robust body made of painted aluminium paired with a thick steel wire cable. The locking mechanism is intuitive yet impenetrable: the seals can be adjusted simply by inserting the steel cable into the locking holes and then pulling on it. In order to prevent against any attempt of tampering, it is highly advisable to pull the cable down as far as possible. Once engaged, the seal can only be removed by destroying it with heavy-duty industrial shears.
Technical Drawing
Figure 1: Technical dimensions of the 3.5x250mm ISO 17712 High Security Cable Container Seal.
Technical Specifications: 5x250mm Container Seals
| Feature | Technical Measurement |
|---|---|
| Security Certification | ISO 17712:2013 Approved High Security Seal |
| Cable Dimensions | 5 mm (0″ 13/64″) diameter / 250 mm (9″ 27/32″) length |
| Material Composition (Body) | Painted Aluminium |
| Material Composition (Cable) | Steel wire (Custom lengths and different sizes available on demand) |
| Primary Applications | High-Value Cargo, International Container Shipping, Heavy Rail Freight |
Advanced Laser Customization for Global Tracking
Maintaining an accurate ledger is mandatory for ISO compliance. These premium container seals utilize high-definition laser printing to guarantee permanent traceability. We provide sequenced numbering up to 15 digits, and alphanumeric configurations are fully supported. To integrate with your digital logistics software, bar-code possibilities are available. The painted aluminium body can be customised up to 20 characters on one line, and corporate logos are available upon request.
Bulk Packaging for Heavy-Duty Operations

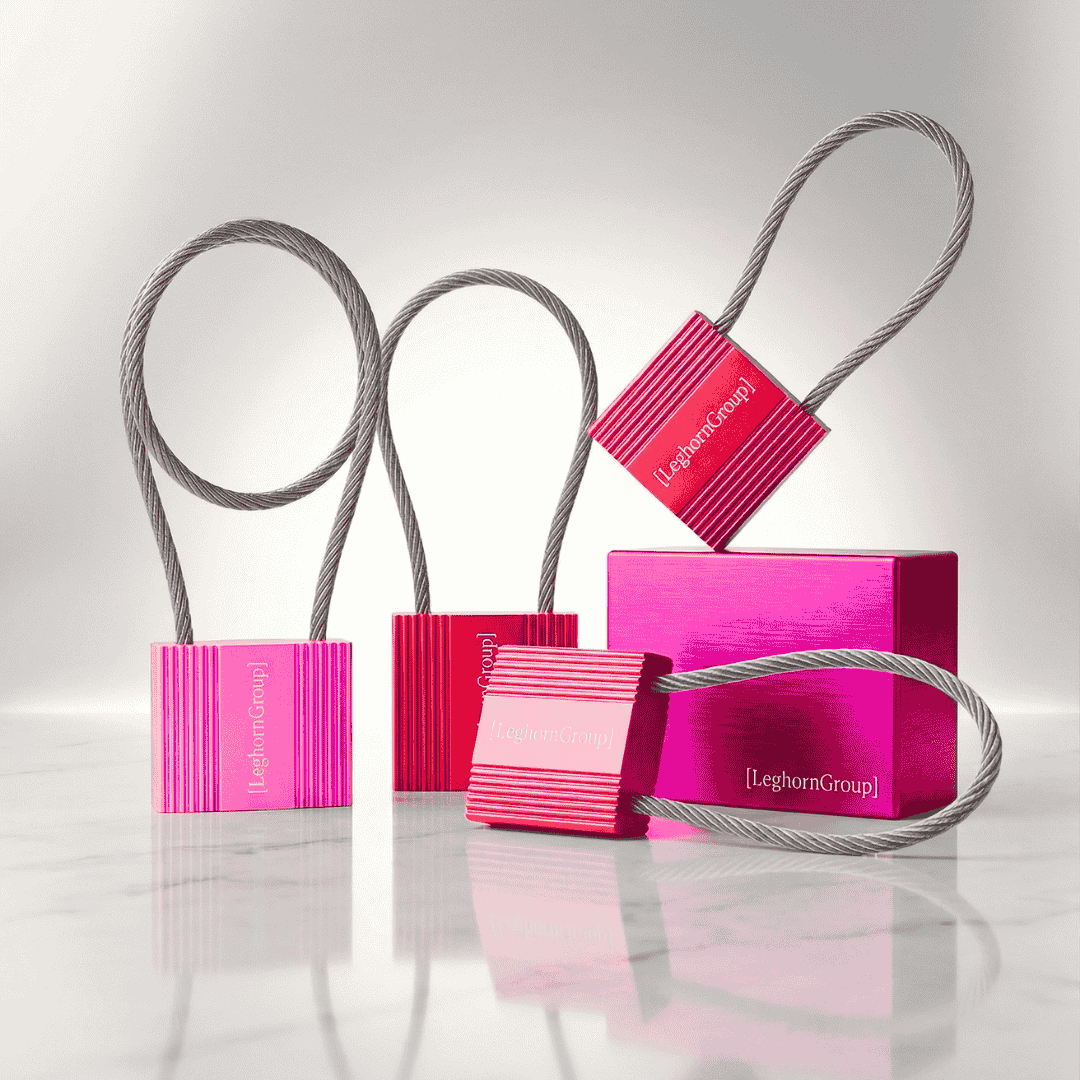

A range of colors and customizations are available to assist your logistics teams with visual routing and immediate threat identification.
Due to their massive 5mm steel construction, these heavy-duty container seals are packaged efficiently to manage weight during B2B distribution: packed securely with 250 pcs per carton. The standard carton size is 40x30x18 cm (15″ 3/4″ x 11″ 13/16″ x 7″ 3/32″), with a dense carton weight of 17 kgs (37lb).
