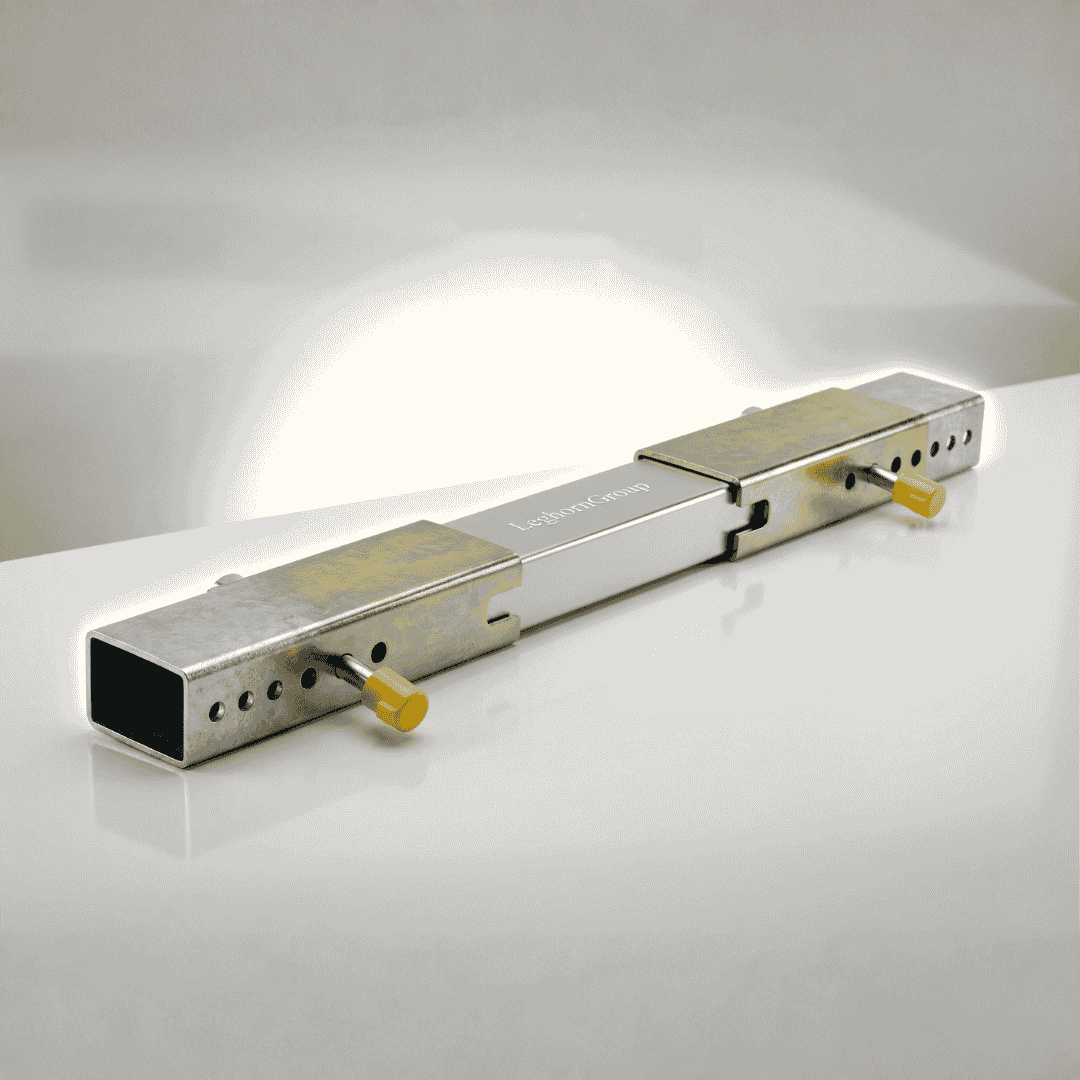

Cargoclamp: The Ultimate High-Security Barrier Container Seals
For high-value logistics where standard locks are insufficient, the CARGOCLAMP stands as the premier choice in container seals. Unlike traditional barriers, the Cargoclamp provides dual-layer protection: it physically blocks the container doors from opening and simultaneously shields the door handles from tampering. Designed for the most demanding transport environments in India and beyond, this barrier system ensures that your cargo remains untouched from the point of origin to the final destination.
3000kg Traction Resistance & Reinforced Engineering
The Cargoclamp is engineered for brute-force defense. These container seals boast an incredible traction resistance of 3000 kg, making them virtually impossible to breach without industrial-grade power tools. The system works by positioning the barrier over the first door handle, secured by a closing bolt seal, while the adjustable part covers the second handle. This integrated design locks the entire door mechanism into a single, immovable unit of galvanized steel.
Technical Drawing
Figure 1: Technical dimensions of the 3.5x250mm ISO 17712 High Security Cable Container Seal.
Cargoclamp Technical Specifications
| Feature | Technical Measurement |
|---|---|
| Traction Resistance | 3000 kgs |
| Barrier Size | Length: 960 mm / Width: 35 mm |
| Pin Dimensions | Diameter: 8 mm / Length: 143 mm |
| Material | Galvanized Steel & RoHS Compliant Polycarbonate/ABS |
| Protection Feature | Dual Barrier: Blocks doors and protects door handles |
Advanced Tamper-Proof Customization
To ensure absolute traceability, all metal components of these container seals are identically numbered. The marking system features sequenced numbering up to 7 digits, with alphanumeric and barcode options available. A unique security feature of the Cargoclamp is the transparent polycarbonate cover: both the numbering and your custom logo are protected beneath this shield, preventing any attempt to alter or manipulate the marking during transit.
Bulk Packaging for Industrial Freight Operations
The closure pins are available in various colors to assist with fleet identification and visual sorting at checkpoints. These heavy-duty container seals are built for significant physical impact and long-term durability.
Optimized for B2B logistics distribution, the Cargoclamp is supplied in reinforced packaging: 10 pieces per carton. The carton dimensions are 97x42x11 cm, with a substantial carton weight of 22.5 kg (49lb), reflecting the high-grade industrial steel used in every unit.
