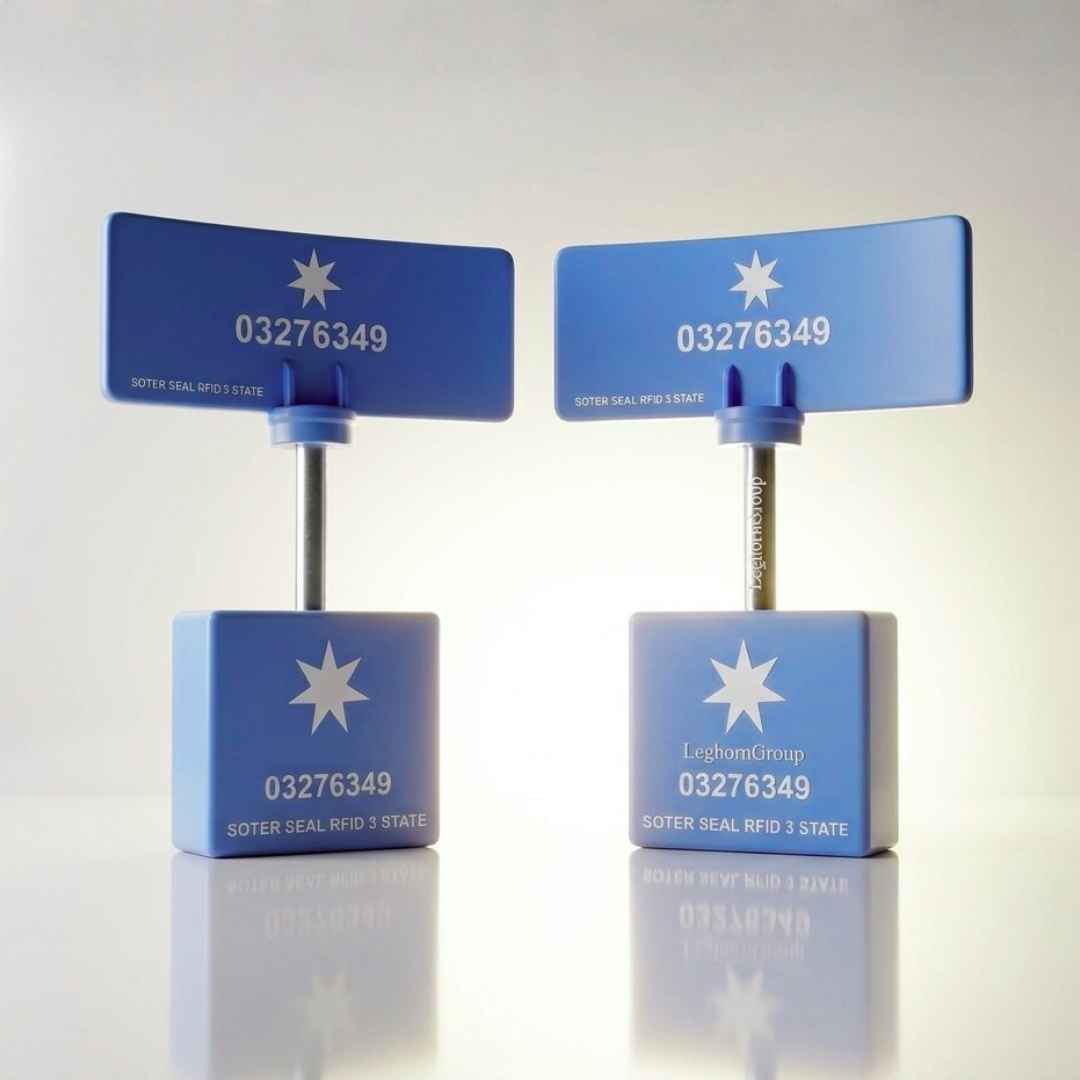

Next-Generation Three-State RFID Container Seals: The Soter Seal
Revolutionize your cargo tracking with the Soter Seal, a heavy-duty UHF RFID bolt-lock engineered for ultimate supply chain transparency in India. As a pioneer in smart logistics, the Soter Seal is the first RFID bolt seal compliant with ISO 17712:2013 technical standards that features three-state detection. This means the integrated chip permanently records and broadcasts its exact status: UNLOCKED, LOCKED, or TAMPERED. By deploying these advanced container seals, Indian port authorities and fleet managers can eliminate guesswork and guarantee cargo security at every checkpoint.
Hardware-Based Security & Impenetrable Physical Defense
Unlike competing products that rely on vulnerable external software algorithms, the Soter Seal’s security is strictly hardware-based, utilizing the latest generation NXP RFID chip. Physically, it combines the immense mechanical security of a carbonitrured steel pin with a durable polypropylene plastic housing. It is a robust, tamper-evident fortress designed to withstand the harsh environmental conditions of long-haul transport and oceanic freight.

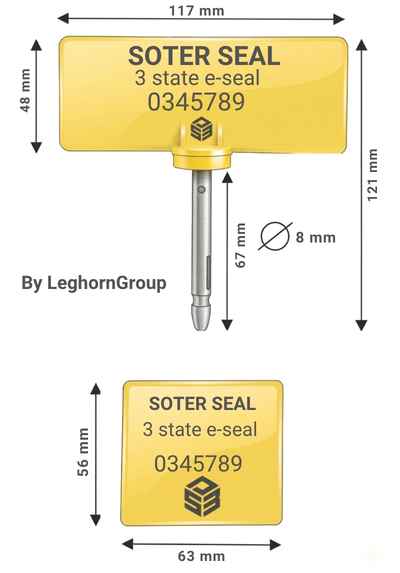

Technical Drawing
Figure 1: Technical dimensions of the Soter Bolt-Lock UHF RFID e-Seal.
Soter e-Seal Technical & Electronic Specifications
| Feature | Technical Measurement |
|---|---|
| Tamper Detection | Three States: Unlocked, Locked, Tampered |
| RFID Technology | Passive UHF (860 – 960 MHz) / EPC Class 1 Gen2 |
| Chip & Memory | NXP G2iM+ | Up to 640 bit User R/W Memory | Password Protected |
| Reading Distance | Up to 2m (Handheld Reader) / Up to 5m (Gate Reader) |
| Physical Dimensions | Pin: 67×8 mm | Bolt: 56x63x26 mm | Electronic Flag: 48x117x4 mm |
| Material & Environment | Carbonitrured Steel + RoHS Polypropylene | IP65 | -20°C to +55°C |
Univocal Coding & Automated Cargo Identification
Data integrity is vital for modern supply chains. The Soter Seal features a 96-bit TID (Tag Identifier) including a 48-bit univocal progressive numbering system that is factory-locked and absolutely cannot be replicated. With 10,000 read/write cycles and a 20-year data retention guarantee, this seal ensures secure, automatic identification of your vehicles and freight containers.
Customization & Heavy-Duty Design
Weighing 114 grams, this highly durable RFID lock is 100% performance-tested. The outer polypropylene plastic housing can be customized upon request with your company mark and numbering, ensuring these smart container seals align perfectly with your corporate branding and visual identification protocols.
